Steel Structure Logistics Park Warehouse

Project Overview Project Name: Steel Structure Warehouse in a Logistics Park. Building Area: 8000㎡ (Length × Width optional: 100m×80m / 160m×50m, etc.). Structural Form: Portal Frame Light Steel Structure (Single/Double Span, Span Recommended 24-36m). Eaves Height: 8-12m (Meeting the requirements of shelf stacking and forklift operation). Roof/Wall: Double-layer corrugated steel plate + insulation cotton (or polyurethane sandwich panel). Design Standard: "Steel Structure Design Standard" GB 50017 "Gate Frame Light House Steel Structure Technical Specification" GB 51022.

Steel structure logistics park warehouse construction

Fast construction organization

Foundation construction: 15-35 days, provide embedded parts positioning template, accuracy ±2mm.
Steel structure installation: 20-25 days, daily hoisting volume ≥ 4 steel frames, synchronous installation of support system.
Enclosure system: 15-20 days, mechanical fixing with self-tapping screws to eliminate water leakage hazards.
Total construction period: 50-75 days, 30% shorter than traditional construction.

Construction process

1. Design deepening
2. Workshop prefabrication
3. Foundation embedding
4. Rigid frame hoisting
5. Purlin/support installation
6. Roof panel laying
7. Wall panel installation
8. Completion acceptance

Quality assurance measures

Material control: Spectral analysis of the first steel piece, random inspection of insulation cotton with a bulk density of ≥16kg/m³
Process monitoring:
100% torque test of high-strength bolts
Roof water spray test (lasting 2h)
Acceptance criteria:
Verticality of the frame ≤H/1000 and ≤25mm
Roof flatness ≤5mm/2m

Purun Steel Structure Service Commitment

Compensation for construction delay: 0.5‰/day of contract value will be paid for overdue period
Warranty period: 50-70 years for main structure, 10 years for enclosure system
24h emergency response: provide maintenance tracking service

Steel Structure Logistics Park Warehouse

Steel structure logistics park warehouse construction

Fast construction organization

Construction process

Quality assurance measures

Purun Steel Structure Service Commitment

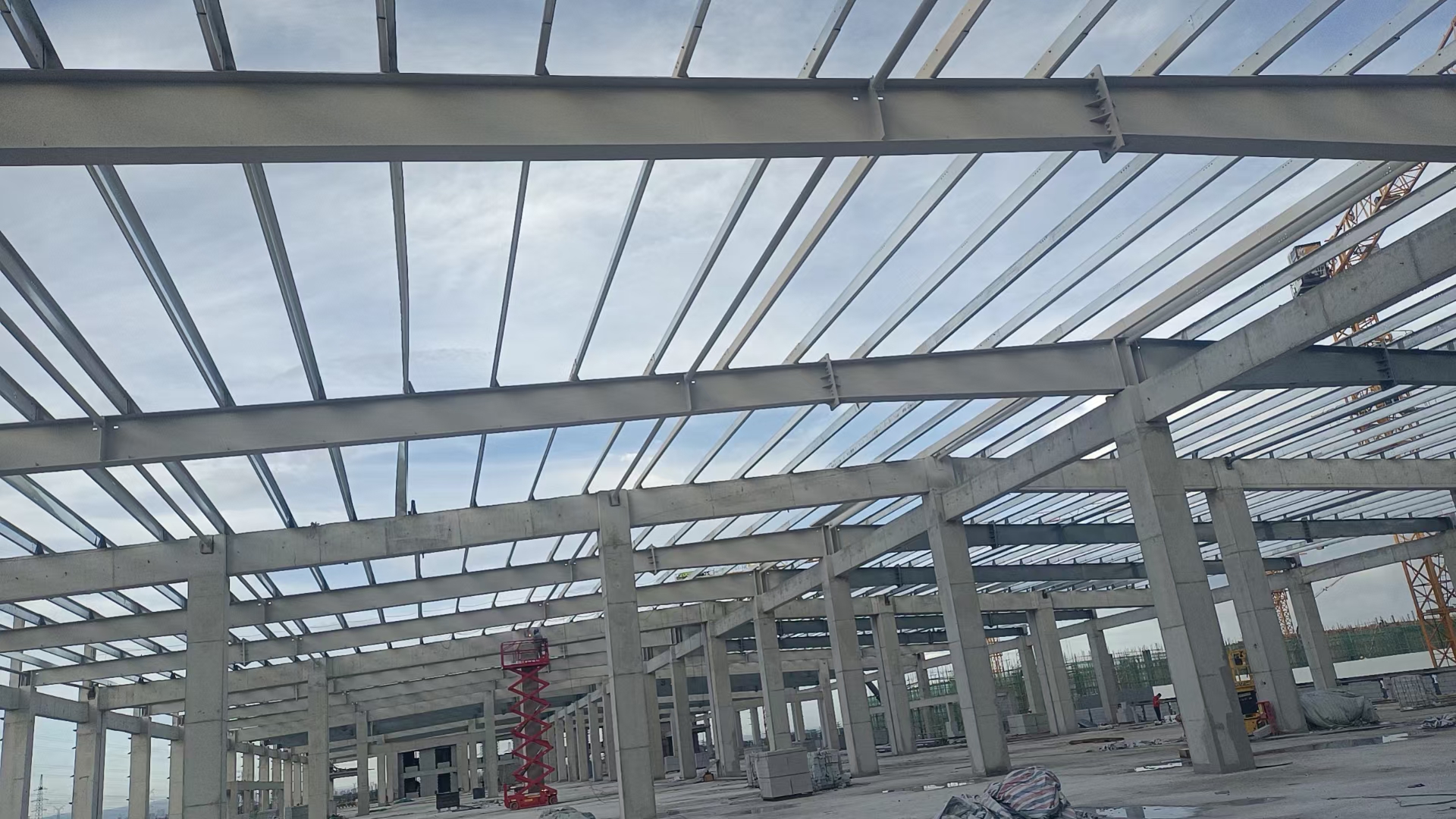

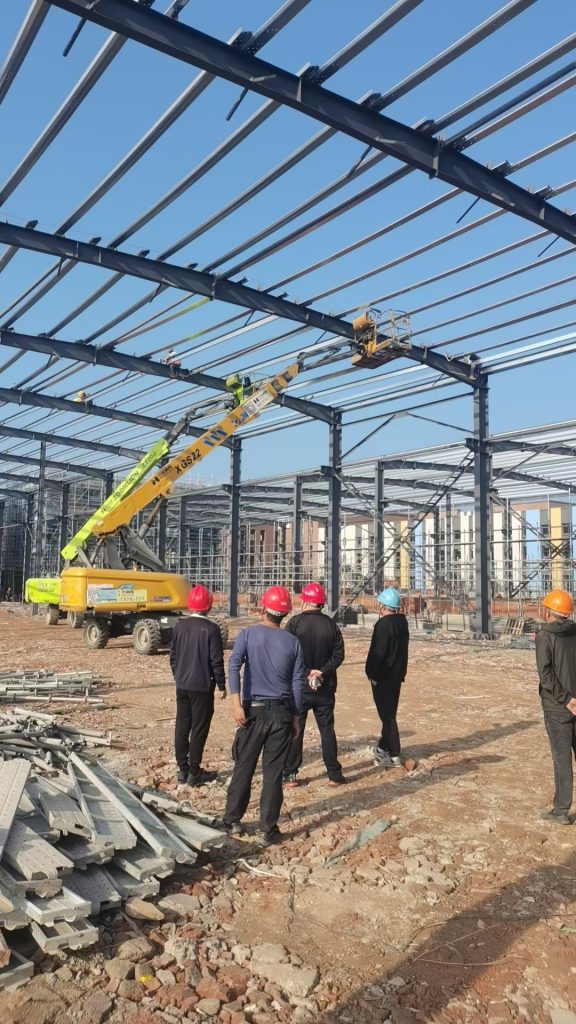

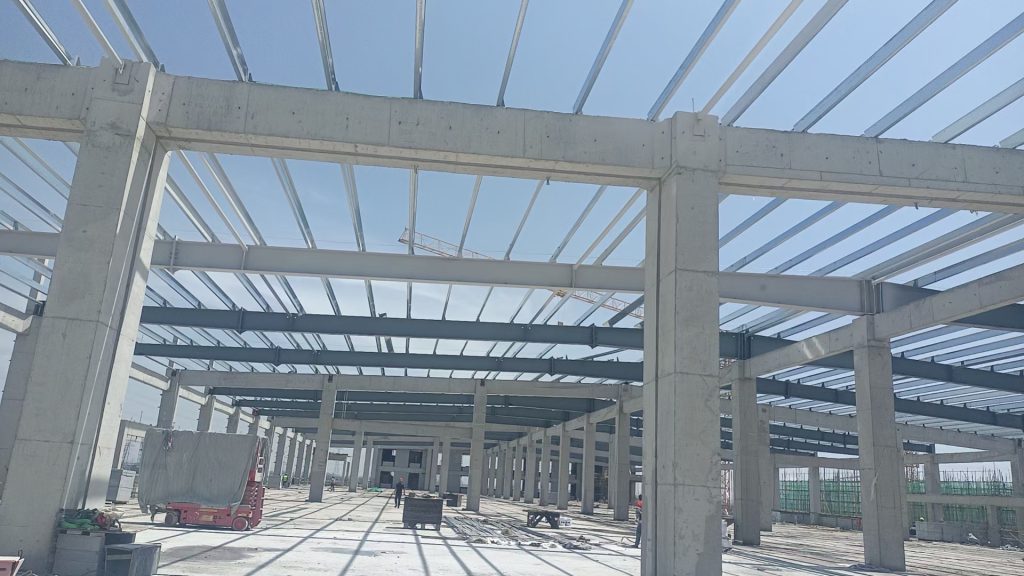

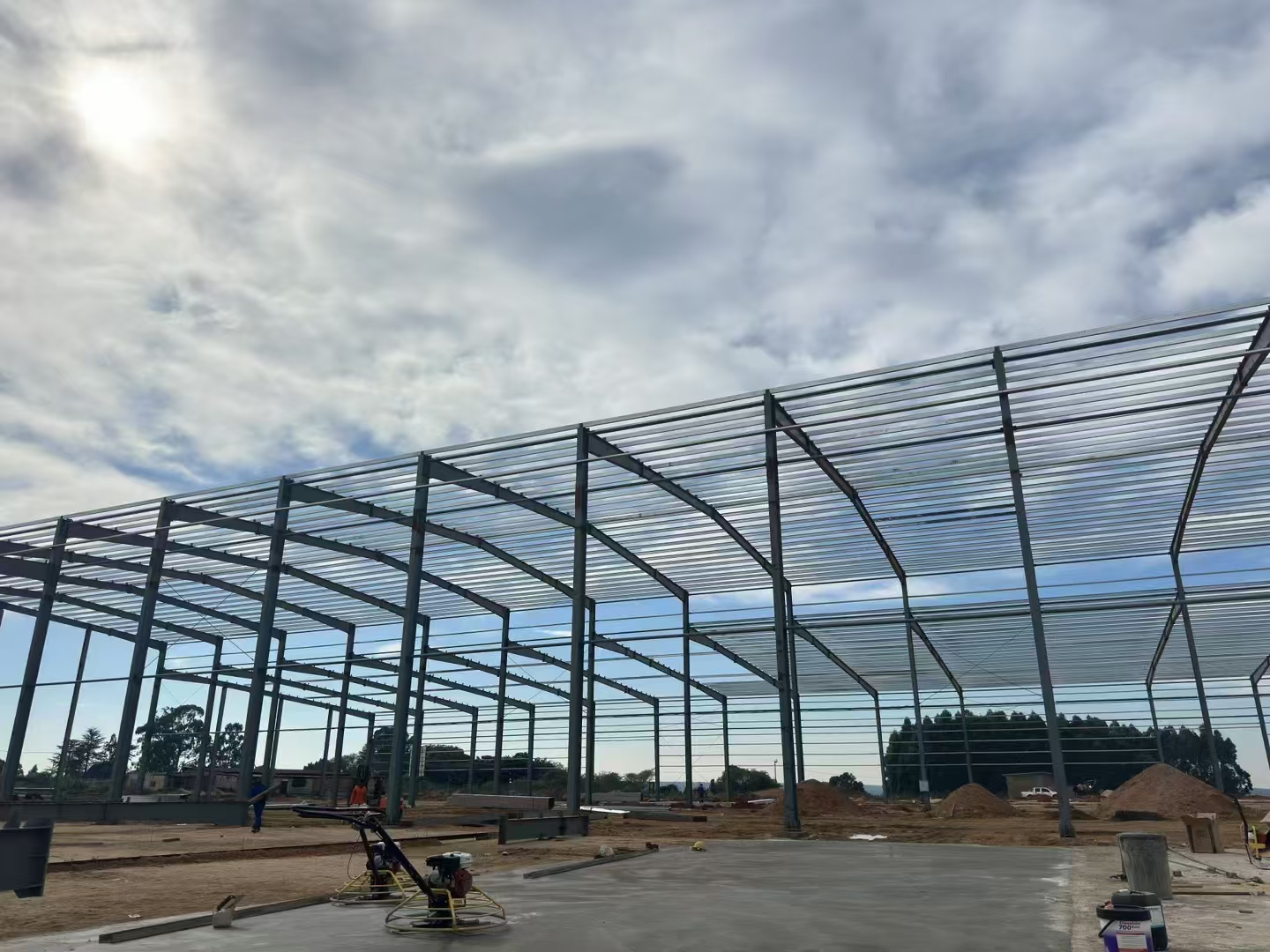

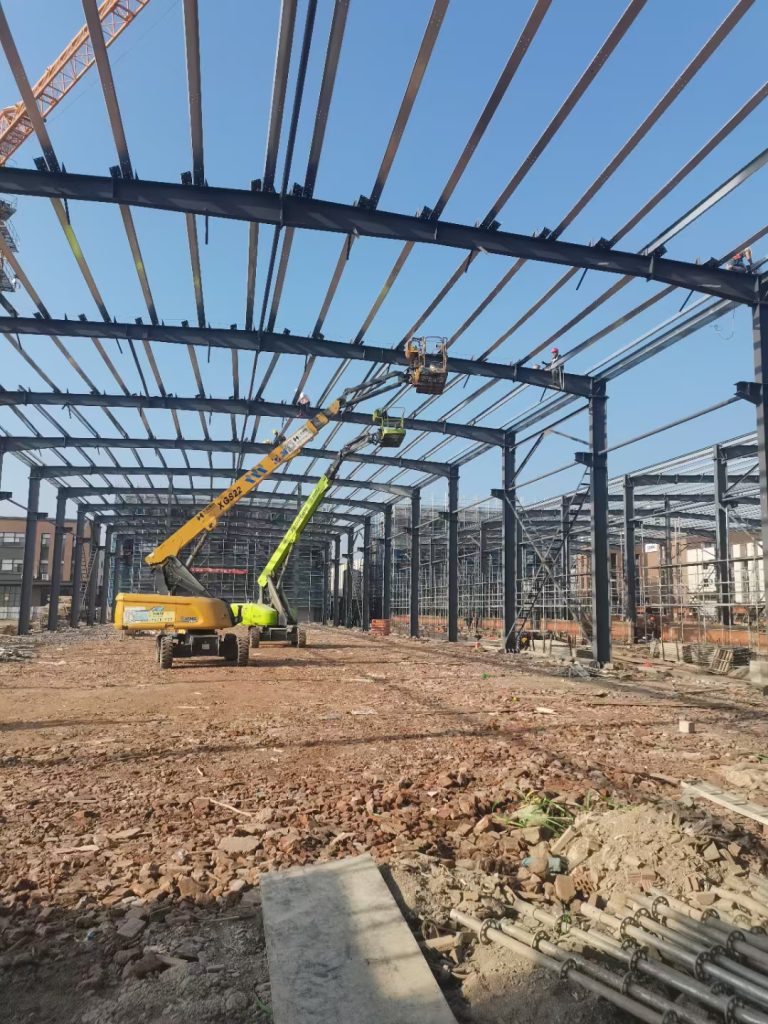

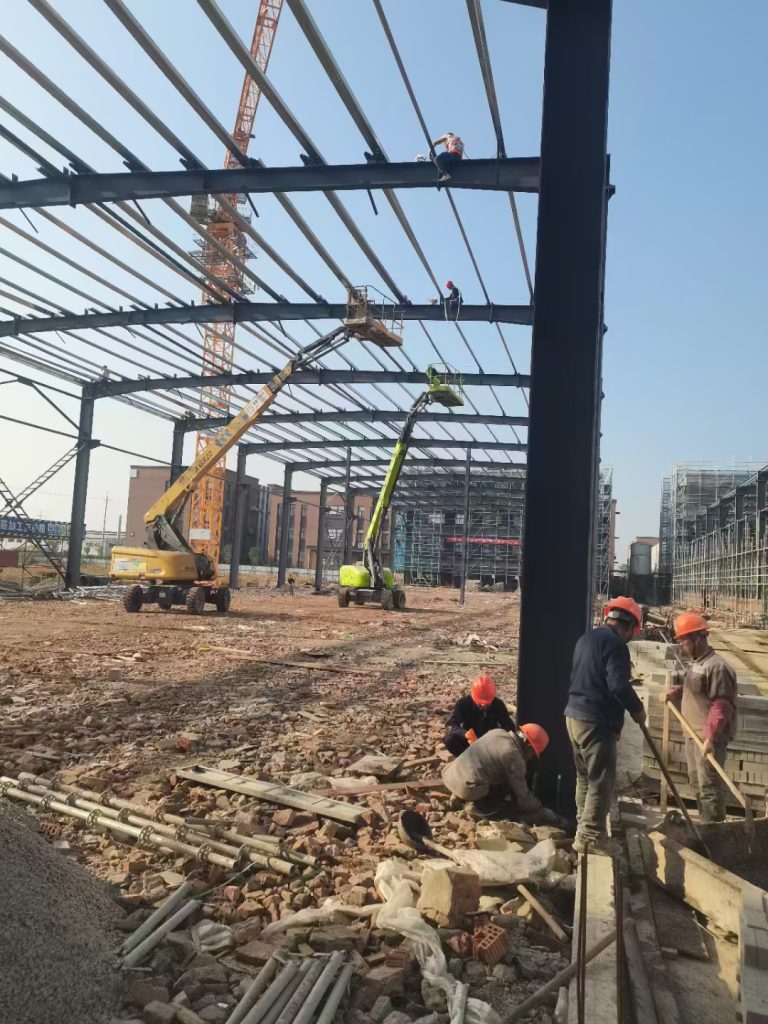

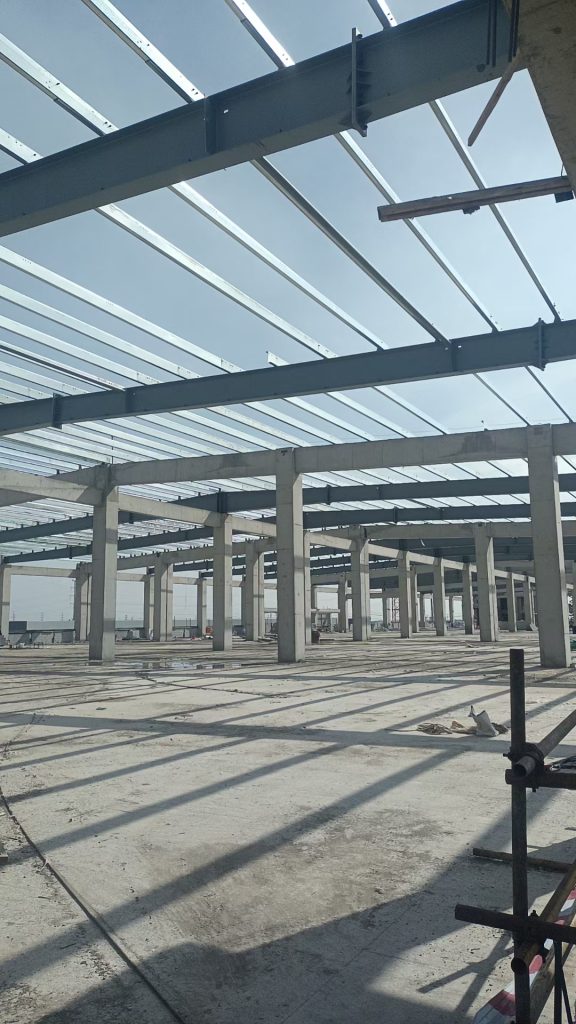

Product Photo Display
