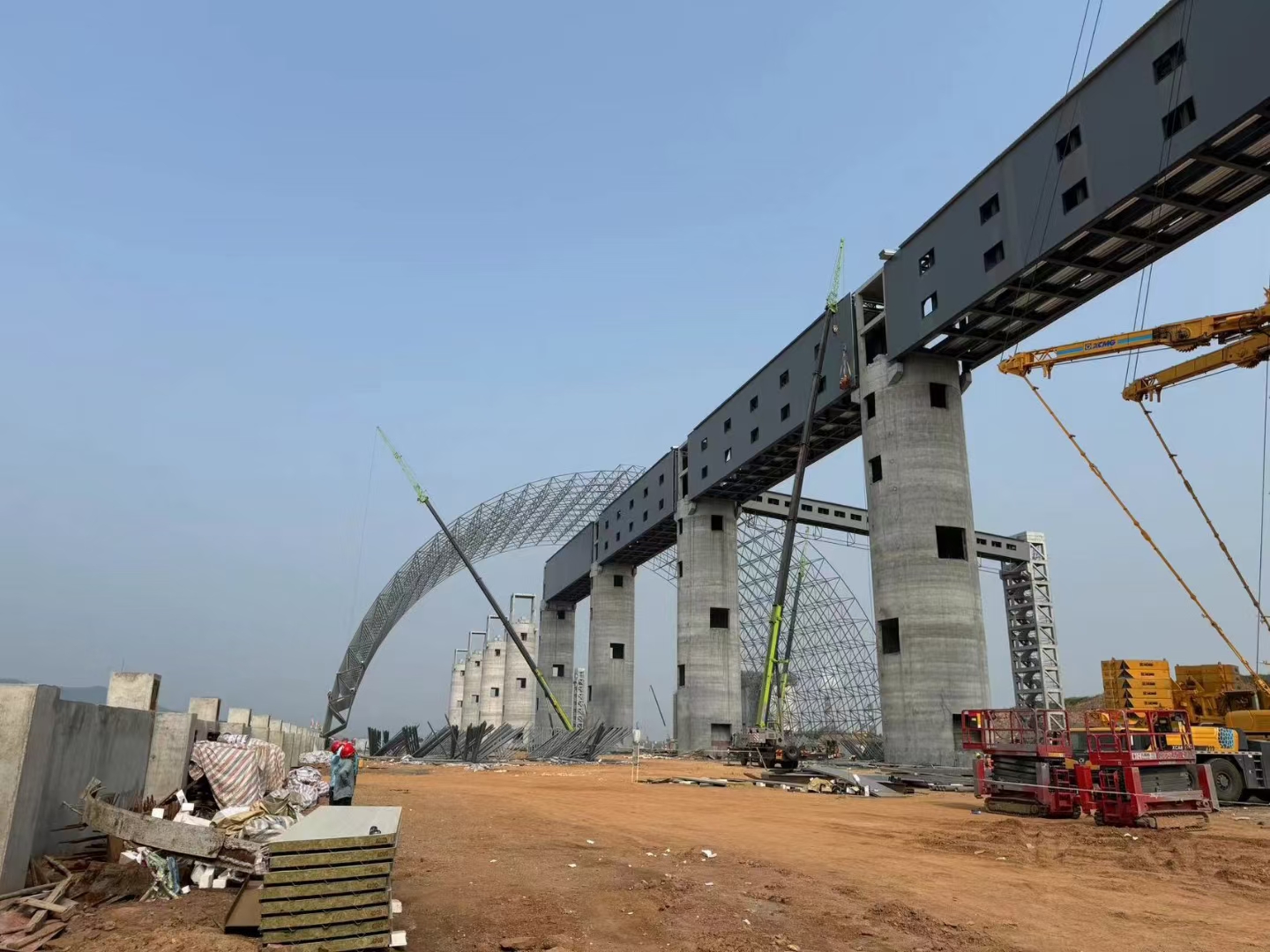

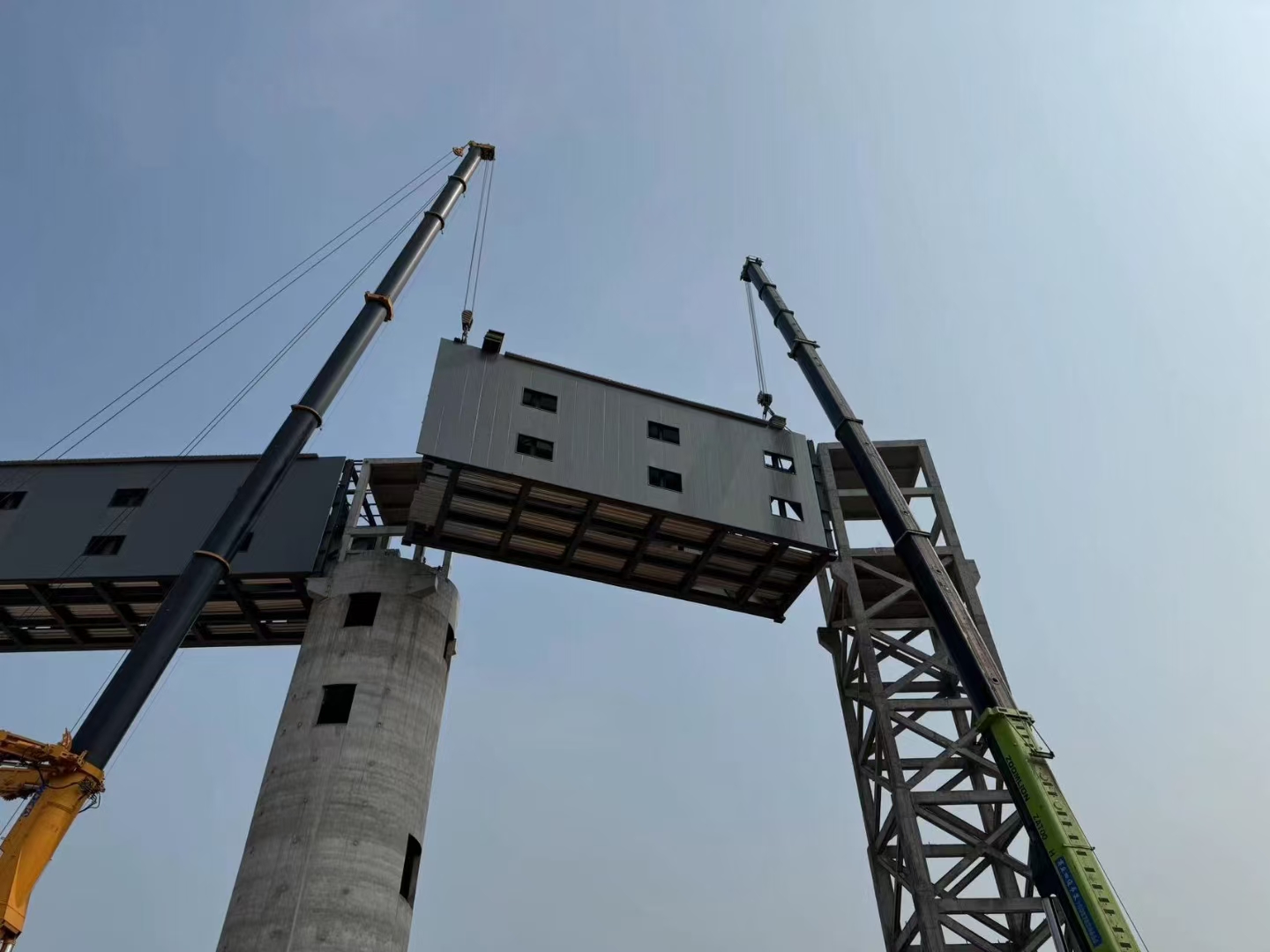

Steel Space Frame Installation

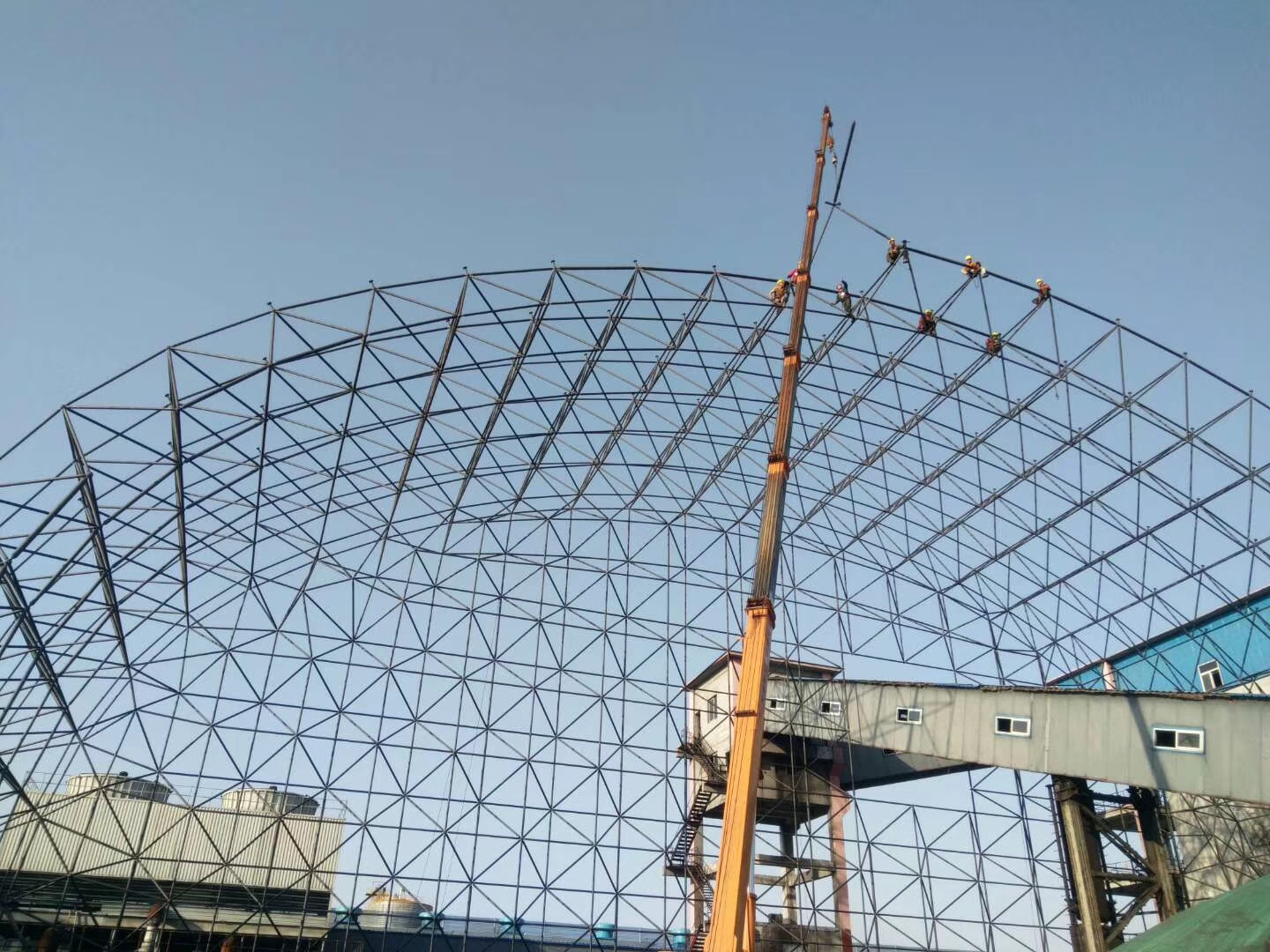

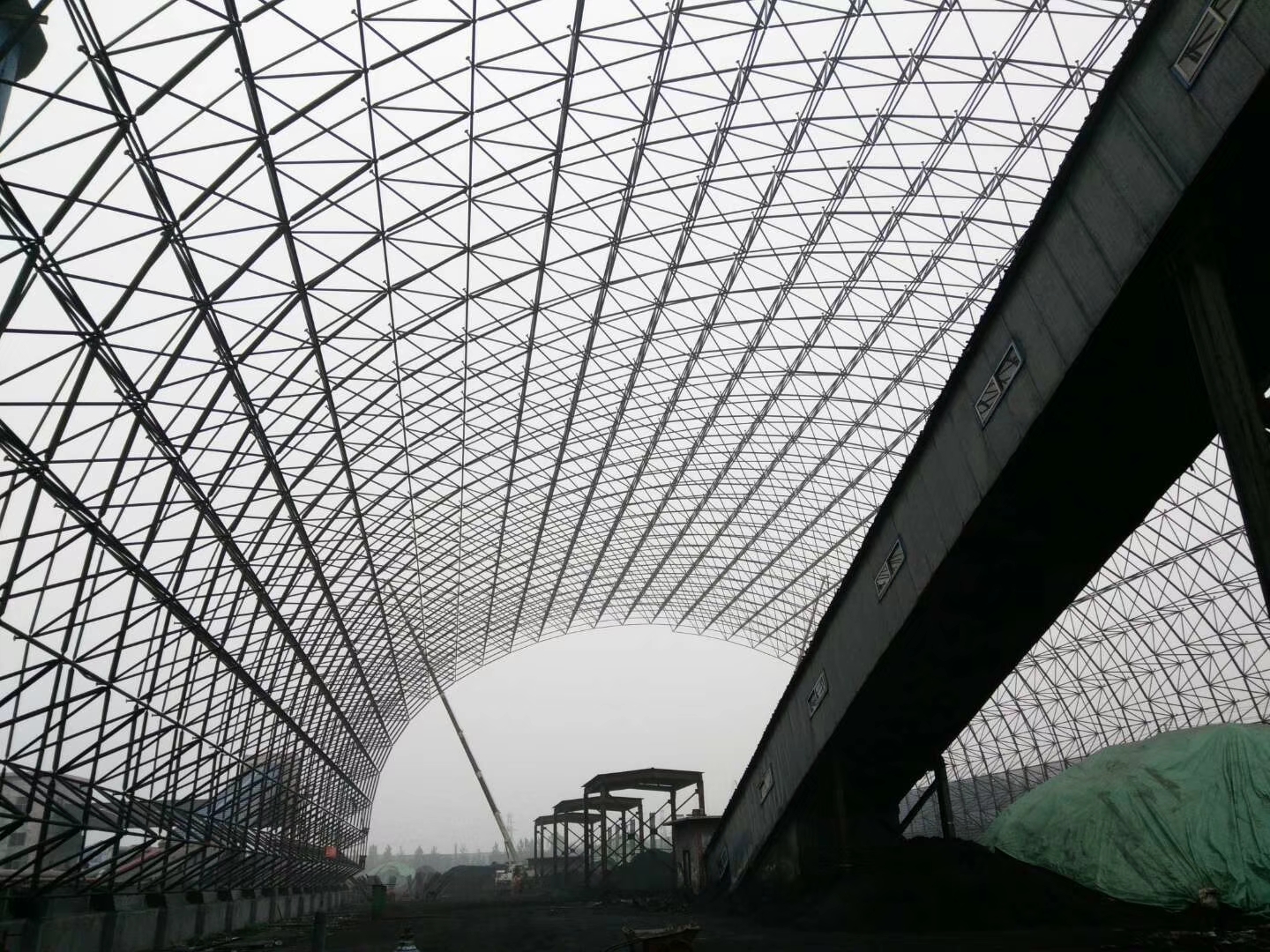

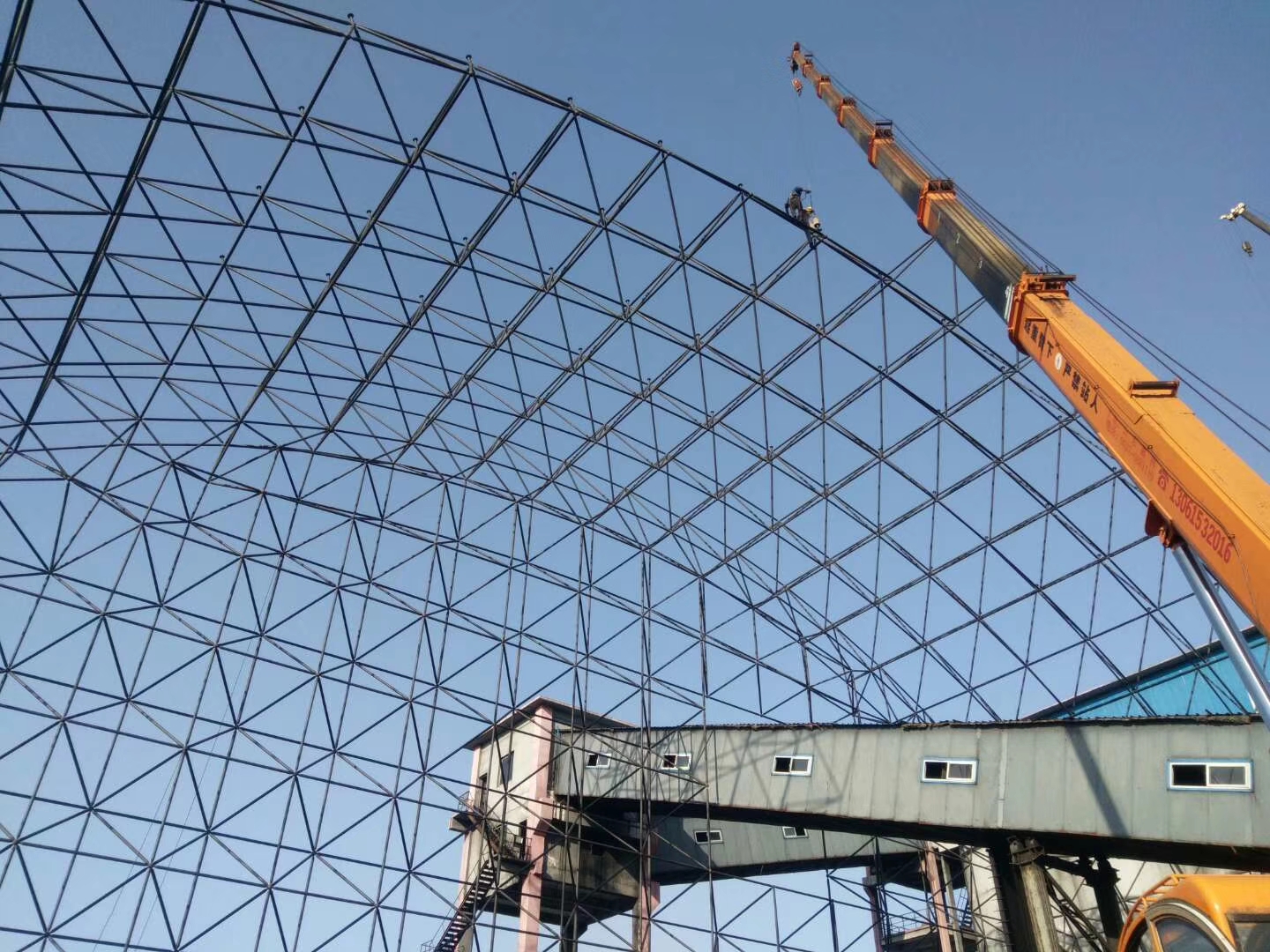

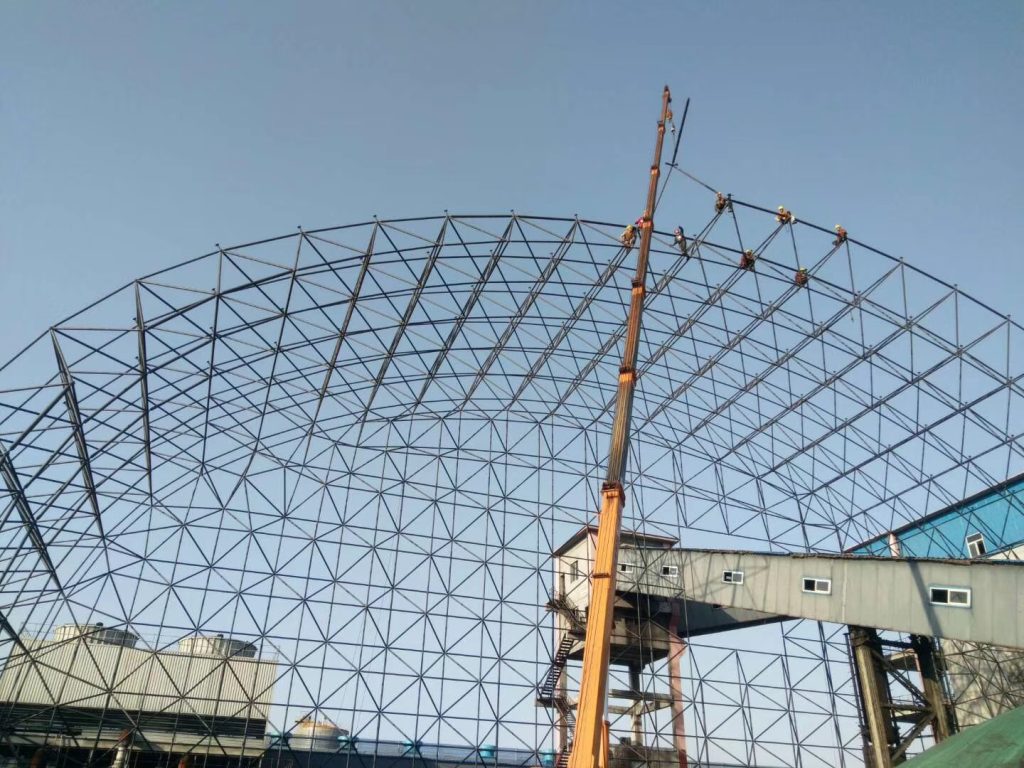

Large Coal Storage Shed Space Frame

In terms of structural characteristics, the frame has three major advantages: first, high material utilization rate, the load is transferred to the surrounding supports through the spatial grid, and the steel consumption is reduced by 15%-20% compared with the portal frame; second, strong adaptability, the plane size can be flexibly adjusted according to the coal storage capacity, and a modular design with a span of 50-120 meters and a length of 100-300 meters has been achieved; third, convenient maintenance, the connection between the rod and the bolt ball is convenient for the replacement of a single component, greatly reducing the cost of later maintenance.

MOQ: 10,000 square meters
Get a Quote +86 18605169601
  • Fast And Safe Logistics
  • Provide drawings to get a free quote at the touch of a button.

Overview of Space Frame Engineering of Large

Coal Storage Shed

  • Project Introduction
  • Core load design
  • Industry Value Summary

  • Project name: Shuozhou open-pit mine closed coal shed of China Energy Group

    Structural form: main frame space frame grid + (span 132m × length 398m)
    Technical innovation:
    The first wind-resistant cable net + damper integrated wind-resistant system in China (verified by 45m/s wind speed)
    Integrated unmanned bucket wheel machine automatic operation system (stack and reclaim accuracy ±0.3m)
    Economic benefits:
    Reduced coal loss by 120,000 tons per year (valued at 60 million yuan)
    Photovoltaic power generation 4.8GWh/year, covering 30% of operating energy consumption

  • Dead load: structure deadweight + roof system (≥0.5kN/m²)

    Live load: coal pile side pressure (equivalent uniform distribution 15-30kN/m²)

    Wind/snow: basic wind pressure 0.75kN/m² (value taken from Shanxi), snow pressure 0.4kN/m²

    Special load: bucket wheel excavator impact force (500kN point load)

  • The spatial framework of large coal storage sheds reconstructs coal logistics infrastructure with "large span, zero emission, strong intelligence, and fast recovery".
    Environmental protection hard constraints: completely solve the dust pollution of open-air coal storage and meet the new regulations of the "Air Pollution Prevention and Control Law".
    High operational efficiency: the coal loss rate is reduced to below 0.2%, and the railway loading efficiency exceeds 6,000 tons/hour.

  • Easy To Operate

    Vita est illis semper in fuga uxoresque mercenariae conductae ad tempus ex pacto atque, ut sit species matrimonii, dotis nomine futura coniunx hastam et tabernaculum offert marito, post statum diem si id elegerit discessura, et incredibile est quo ardore apud eos in venerem uterque solvitur sexus.

    • Post hoc impie perpetratum quod
    • Conlaticia victitabant, et civili iustoque imperio

  • Easy To Operate

    Vita est illis semper in fuga uxoresque mercenariae conductae ad tempus ex pacto atque, ut sit species matrimonii, dotis nomine futura coniunx hastam et tabernaculum offert marito, post statum diem si id elegerit discessura, et incredibile est quo ardore apud eos in venerem uterque solvitur sexus.

    • Post hoc impie perpetratum quod
    • Conlaticia victitabant, et civili iustoque imperio

Advantages and Features

Large column-free working space

The span is 100-150 meters without columns, the net height is ≥28 meters, and the bucket wheel stacker and reclaimer operation is fully covered. The coal storage density is increased by 40%, and the single shed capacity exceeds 300,000 tons, realizing efficient three-dimensional storage of coal piles.

Technical anchor point: pipe truss/grid system → release 100% of the working surface.

Extreme environmental protection dust suppression

Fully enclosed structure + intelligent spray system, PM10 concentration ≤1mg/m³ (national standard 5mg/m³), coal dust loss rate is reduced to below 0.2%, and the annual loss reduction benefit exceeds 2 million yuan/10,000 tons of reserves.

Technical anchor point: microporous spray coverage rate 98% → dust suppression rate＞95%.

Heavy-load safety redundant design

Cast-welded hybrid nodes + wind-resistant cable nets, bearing the lateral pressure of coal piles (30kN/m²) and the impact of bucket wheel excavators (500kN point load), passed the 32m/s wind tunnel verification, 8-degree seismic fortification, and 60 years of service life without major repairs.

Technical anchor point: Q390C high-strength steel → steel consumption 75kg/㎡.

Intelligent construction and low-carbon integration

Ground assembly + hydraulic synchronous lifting (error ≤3mm), shortening the construction period by 40%; pre-buried optical fiber sensors and photovoltaic brackets (installed capacity ≥2MW), reducing operation and maintenance costs by 60%, and reducing annual carbon emissions by 4,200 tons.

Technical anchor point: BIM-guided installation → accuracy ±2mm.
