Construction of the Main Structure of a Heavy Industrial Steel Structure Plant

Heavy industrial steel structure workshops have many advantages. They are strong and have a large bearing capacity, and can withstand the load of large equipment and harsh environments. The construction period is short, the components are prefabricated in the factory, and the on-site assembly is fast. The space utilization rate is high, the column section is small, and the indoor space is open. The design is flexible and can be customized as needed. The steel is recyclable, environmentally friendly and energy-saving. In addition, the appearance is simple and beautiful, the maintenance cost is low, and it has good durability. It only needs regular and simple maintenance, and can provide a reliable and efficient space for industrial production.

Project Overview

Column foot node

Outsourced: high-intensity earthquake zone, concrete boot height ≥1.5 times column section, reinforcement ratio ≥1.2%.
Buried: heavy-duty factory building (Q≥50t crane), buried depth ≥3 times column section, shear bolts @200mm in the foundation,
Anchor bolt type: light-duty factory building, anchor bolt diameter ≥36mm, double nuts to prevent loosening.

Special working conditions countermeasures

Large equipment interference: BIM preview installation path (reserve ≥500mm safety distance), equipped with laser anti-collision radar.
Dynamic load influence: TMD damper (mass block = 0.5% structural mass) is set on the crane beam to reduce vibration by 40%.
Welding deformation: CO₂ gas shielded welding (heat input ≤25kJ/cm), symmetrical welding + jump welding process.
Delayed fracture of high-strength bolts: Bolt pre-tension loss ≤10%, torque re-inspection within 48h after final tightening (attenuation rate >5% requires re-tightening).

Quality acceptance standard (GB 50205)

High-strength bolt connection: torque deviation ≤±10%, intelligent torque wrench.
Weld appearance: undercut ≤0.5mm, pores ≤φ2mm, weld inspection ruler.
Structural verticality: ≤H/1000 and ≤25mm, total station.
Fireproof coating: intumescent coating thickness ≥2.0mm (fireproof 2h), magnetic thickness gauge.

Efficient construction

"Division and segment flow operation" (for example:
①A zone steel column → ②B zone steel column + A zone crane beam → ③C zone steel column + B zone crane beam + A zone roof truss)
This mode can shorten the construction period by 30% and reduce the machine standby time by 50%.

Construction of the Main Structure of a Heavy Industrial Steel Structure Plant

Project Overview

Column foot node

Special working conditions countermeasures

Quality acceptance standard (GB 50205)

Efficient construction

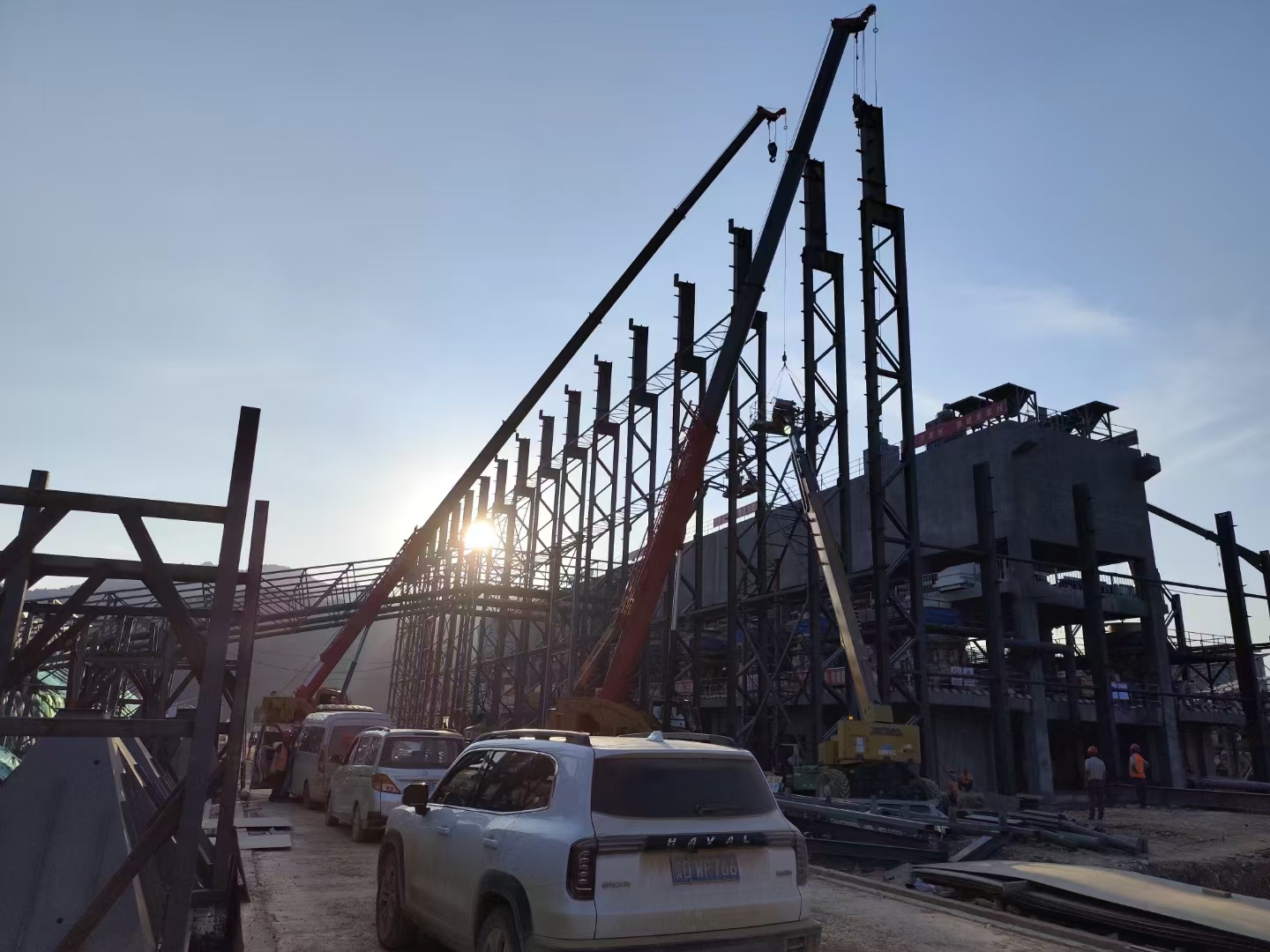

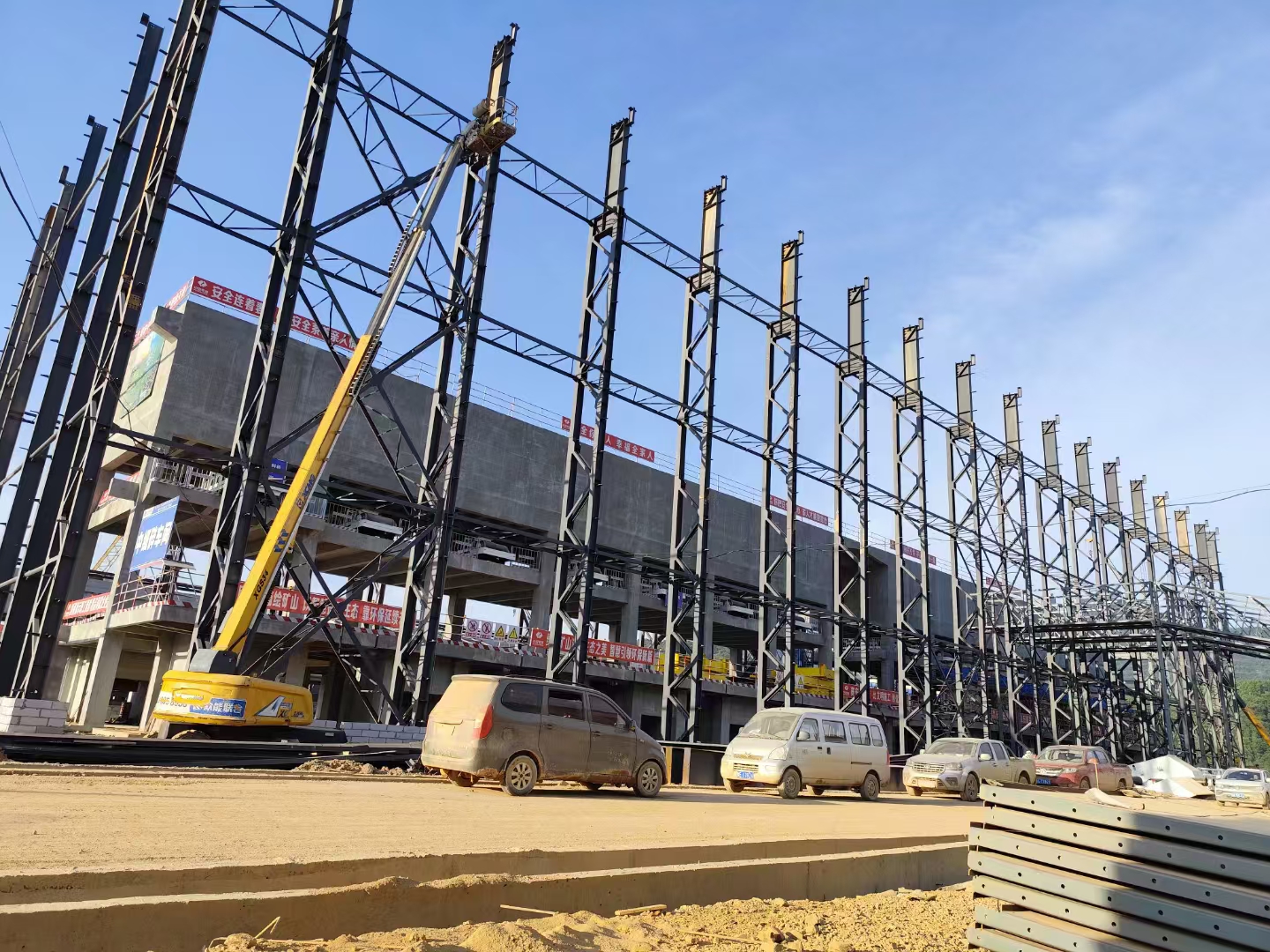

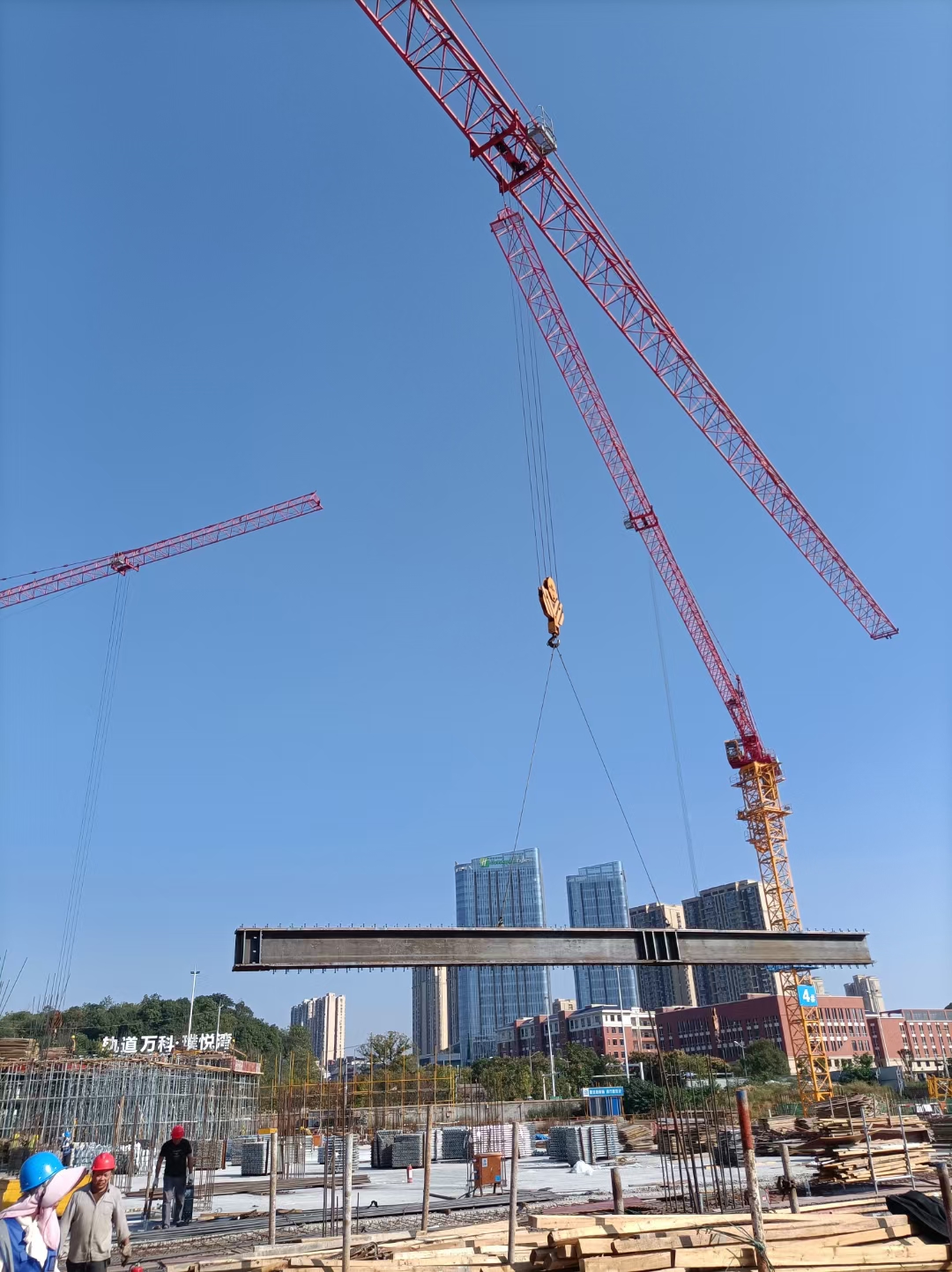

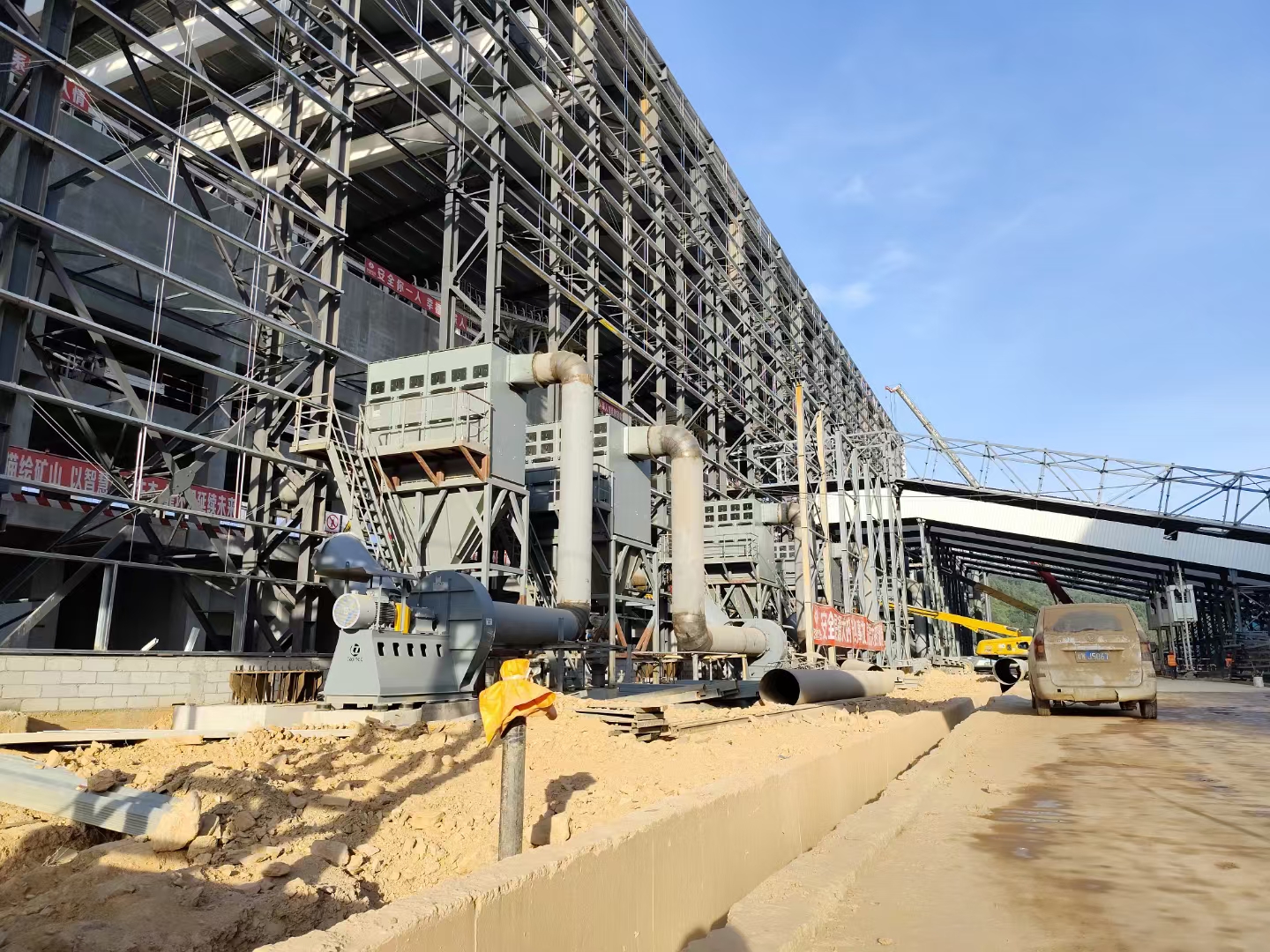

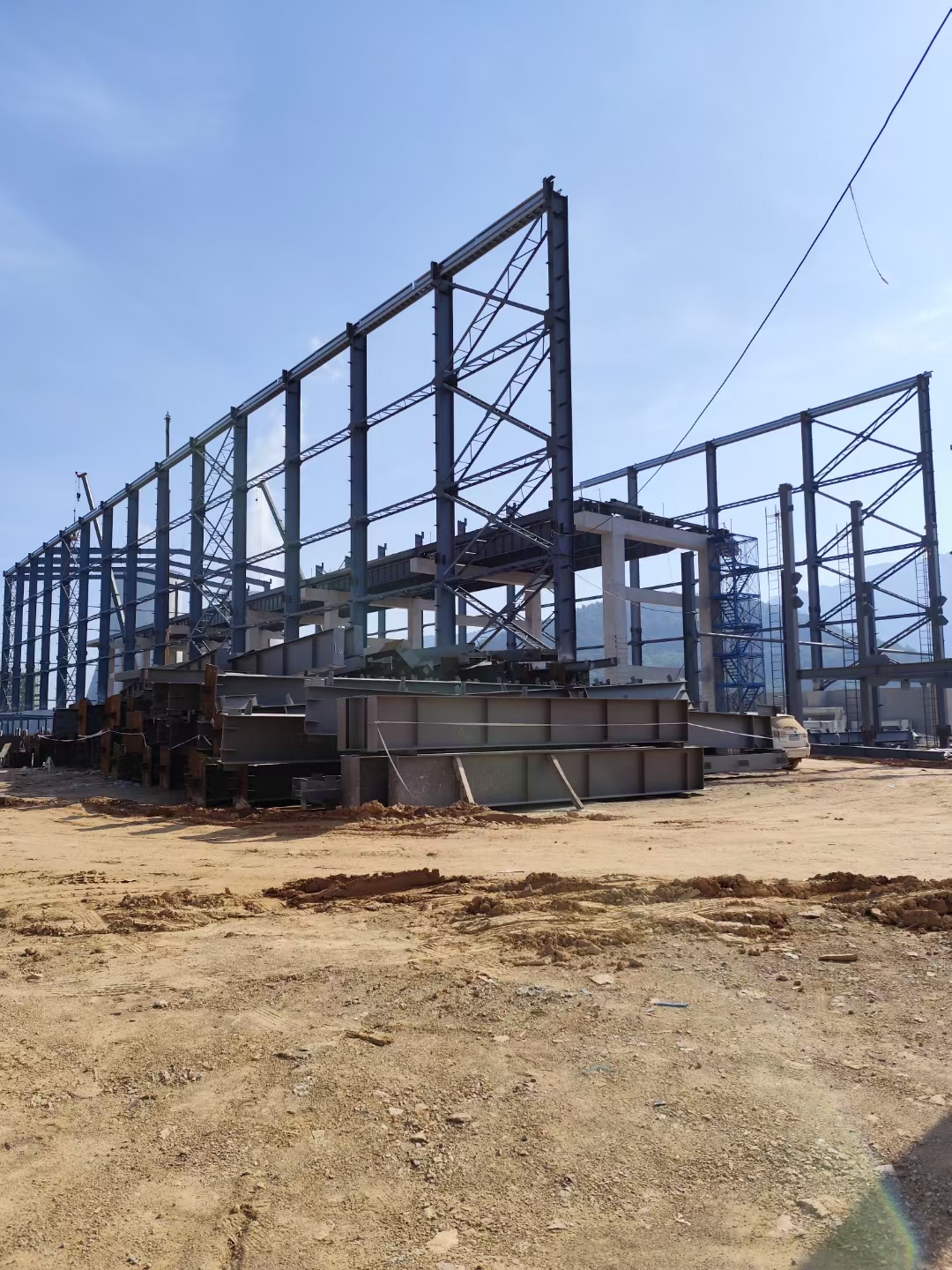

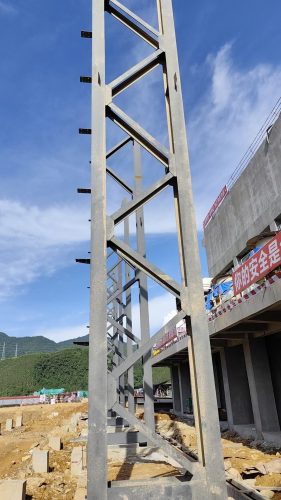

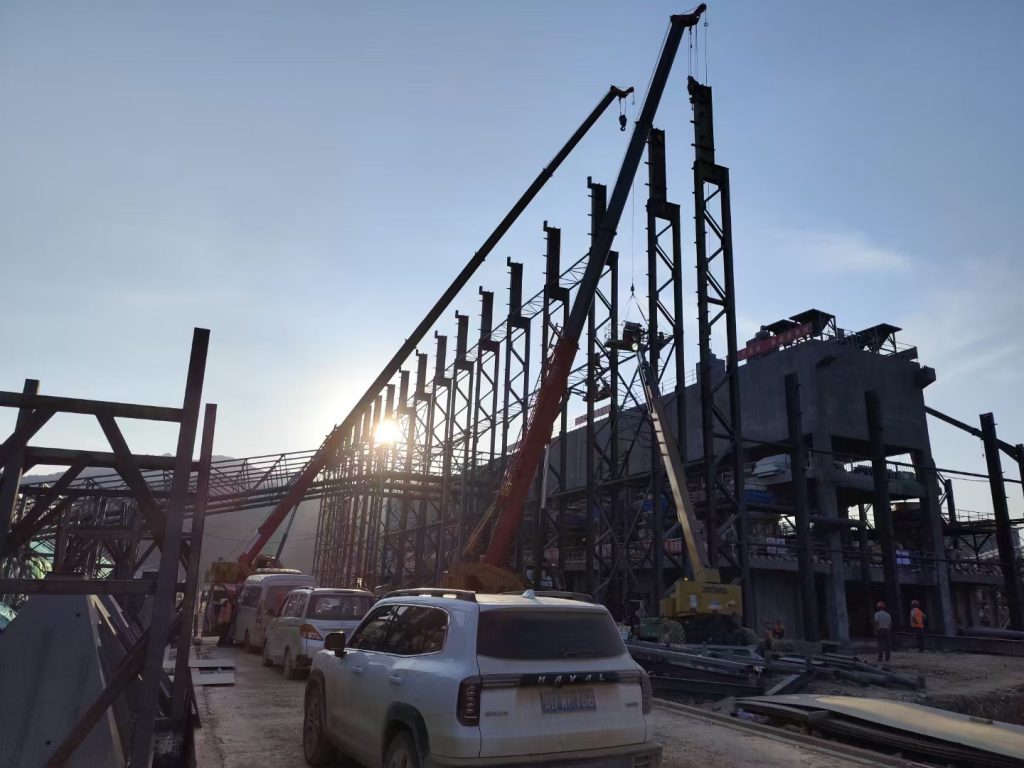

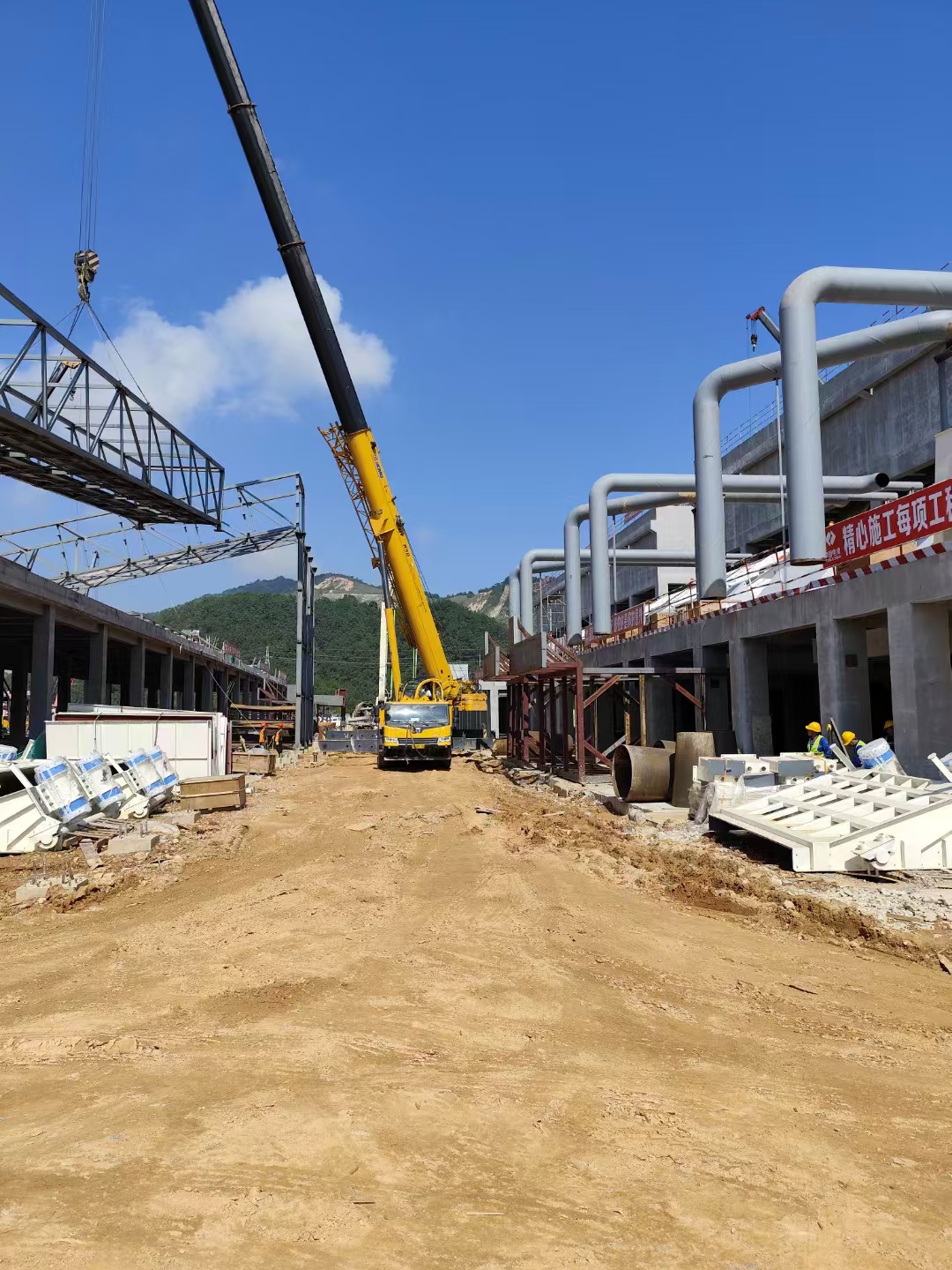

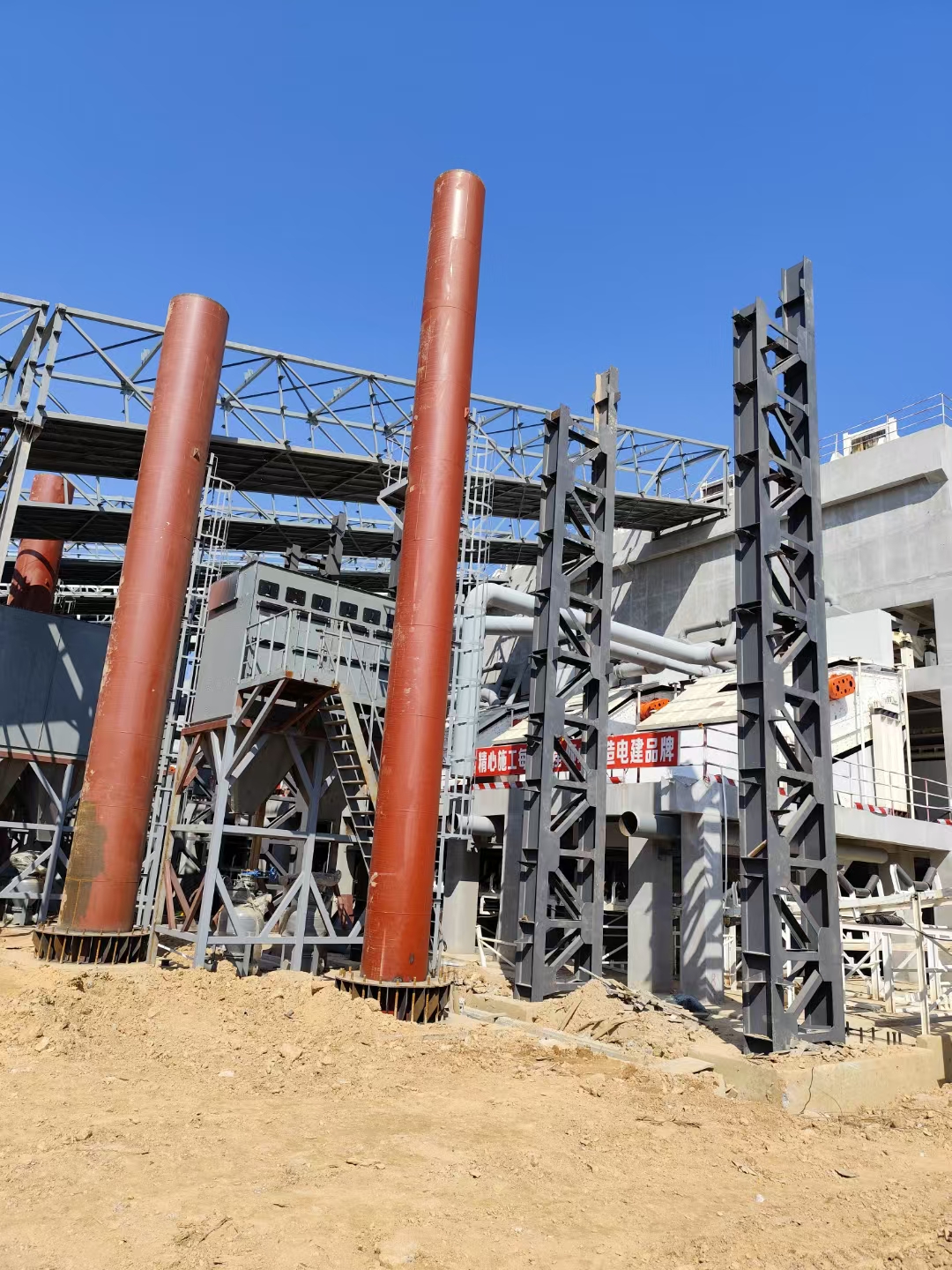

Project Photo Display
